G80 Manual Chain Hoist With Alloy Steel Hook Heavy-Duty Hand Chain Block

Brand Name : JCYC

Model Number : HSZ

Certification : CE

Place of Origin : China

MOQ : 10 pcs

Price : 18USD

Payment Terms : L/C,T/T,Western Union

Supply Ability : 500 pcs / week

Delivery Time : 15 - 20 working days

Packaging Details : Carton / Plywood Case / Pallet

Product name : Chain Block

Max.Capacity : 20 ton

Standard Lifting Height : 3m

Color : Alternative

Min Capacity : 0.5 ton

Chain : G80

Contact Now

Manual Chain Hoist – Product Description

The manual chain hoist is a reliable lifting device that operates based on the lever principle of human force. It converts manual pulling force into lifting power, enabling safe and efficient load lifting and lowering without electricity.

By pulling the hand chain, the hand chain wheel drives the gear system and load chain to move. Under the guidance of the chain wheel, the lifting hook rises or lowers smoothly, completing the lifting operation.

Key Features

  • G80 Grade Load Chain
    Made of G80 alloy steel with medium-frequency quenching treatment, featuring fine welding, high strength, and excellent wear resistance.

  • Heavy-Duty Lifting Hook
    Special lifting hook design with strong load-bearing capacity, anti-drop structure, and secure operation.

  • Alloy Steel Hook Housing
    Forged alloy steel housing with powder-coated surface, offering strong impact resistance and corrosion protection.

  • Precision Gear System
    Equipped with national standard gears, finely machined for smooth operation, reduced chain jamming, and enhanced durability.

  • Smooth & Reliable Operation
    Internal components are precisely assembled to ensure smooth lifting, stable performance, and long service life.

Applications

Manual chain hoists are widely used in factories, warehouses, construction sites, shipyards, workshops, and maintenance operations, especially in locations without power supply.

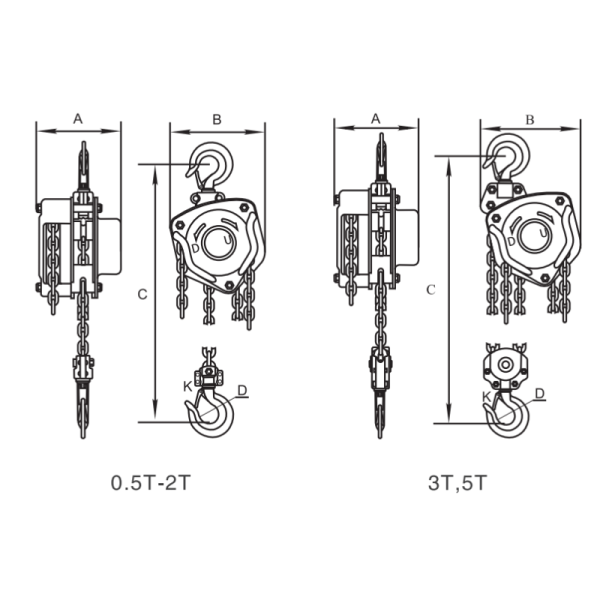

Technical Specifications

G80 Manual Chain Hoist With Alloy Steel Hook Heavy-Duty Hand Chain Block

Model Lifting Capacity(t) Lifting Height(m) Running Test(t) No.of Load Chain Dia.of Load Chain(mm) Net Weight(kg) Packing Size(L*W*H)(cm)
HSZ-0.5 0.5 2.5 0.63 1 5*15 8.6 24*18*14
HSZ-1 1 2.5 1.25 1 6*18 10 24*18*14
HSZ-1.5 1.5 2.5 1.875 1 8*24 15 30*20*16
HSZ-2 2 3 2.5 2 6*18 17.5 24*18*14
HSZ-3 3 3 3.75 2 10*30 23 34*24*16
HSZ-5 5 3 6.25 4 10*30 38 39*30*18.5
HSZ-10 10 3 13 4 10*30 68 62*50*28
HSZ-20 20 3 25 8 10*30 180 70*45*75
HSZ-30 30 3 33 12 10*30 250 72*50*68

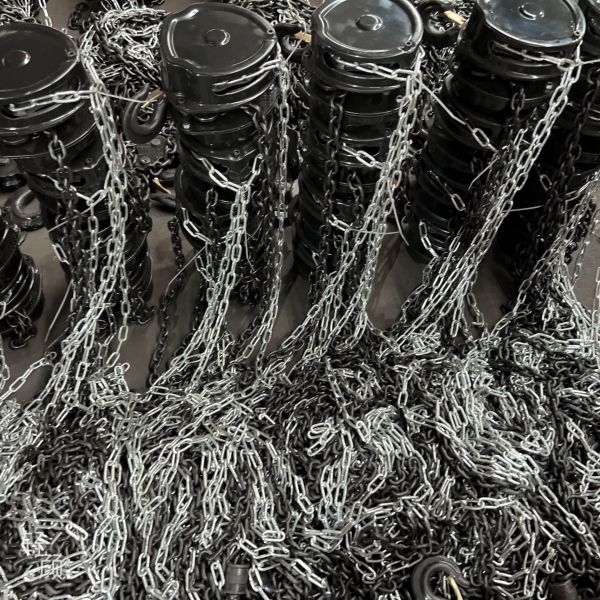

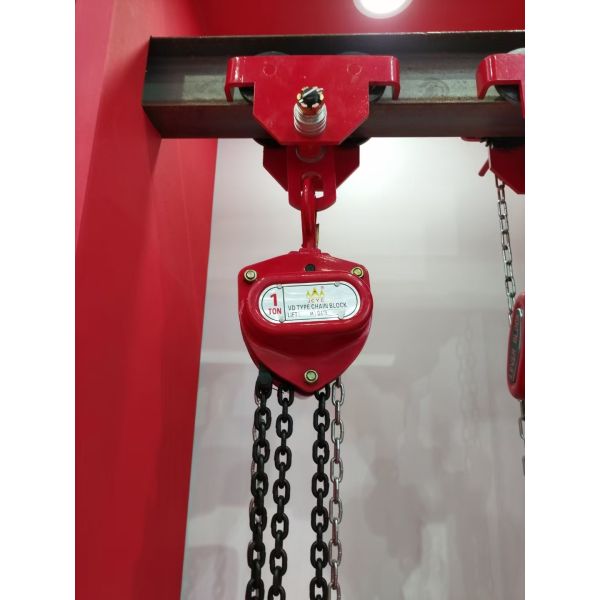

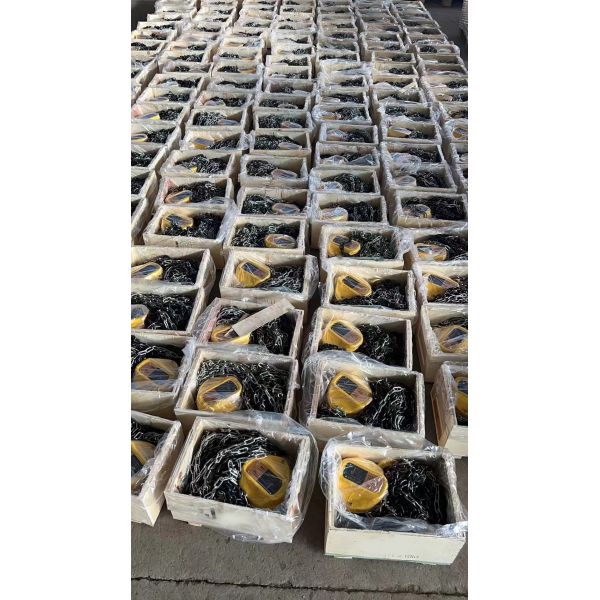

Product Images
G80 Manual Chain Hoist With Alloy Steel Hook Heavy-Duty Hand Chain Block
G80 Manual Chain Hoist With Alloy Steel Hook Heavy-Duty Hand Chain Block
G80 Manual Chain Hoist With Alloy Steel Hook Heavy-Duty Hand Chain Block
Company Profile
G80 Manual Chain Hoist With Alloy Steel Hook Heavy-Duty Hand Chain Block
Exhibition Showcase
G80 Manual Chain Hoist With Alloy Steel Hook Heavy-Duty Hand Chain Block
G80 Manual Chain Hoist With Alloy Steel Hook Heavy-Duty Hand Chain Block
